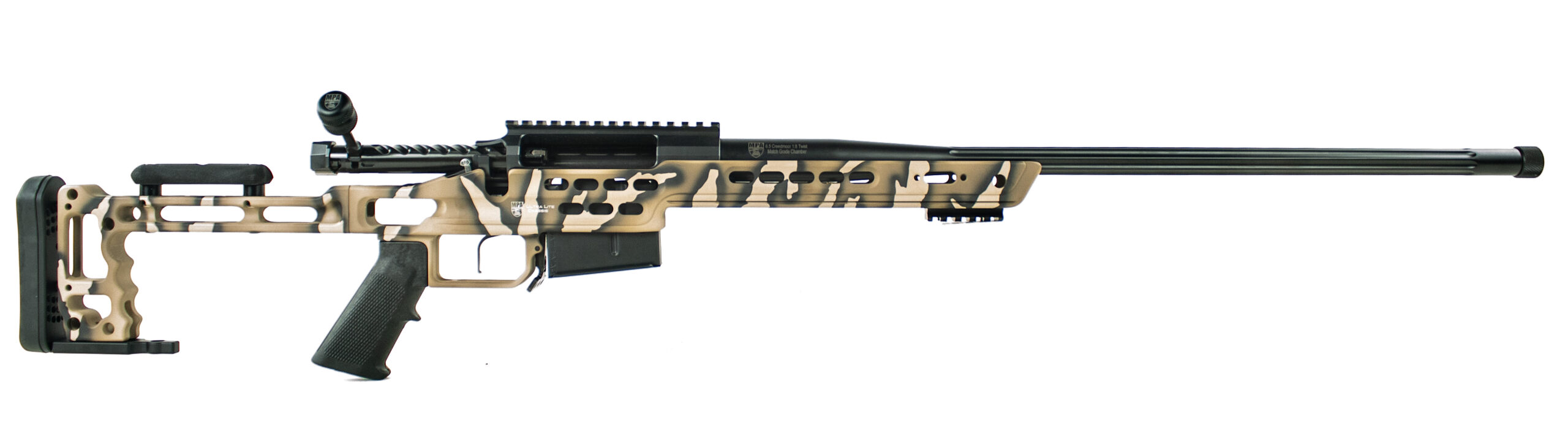

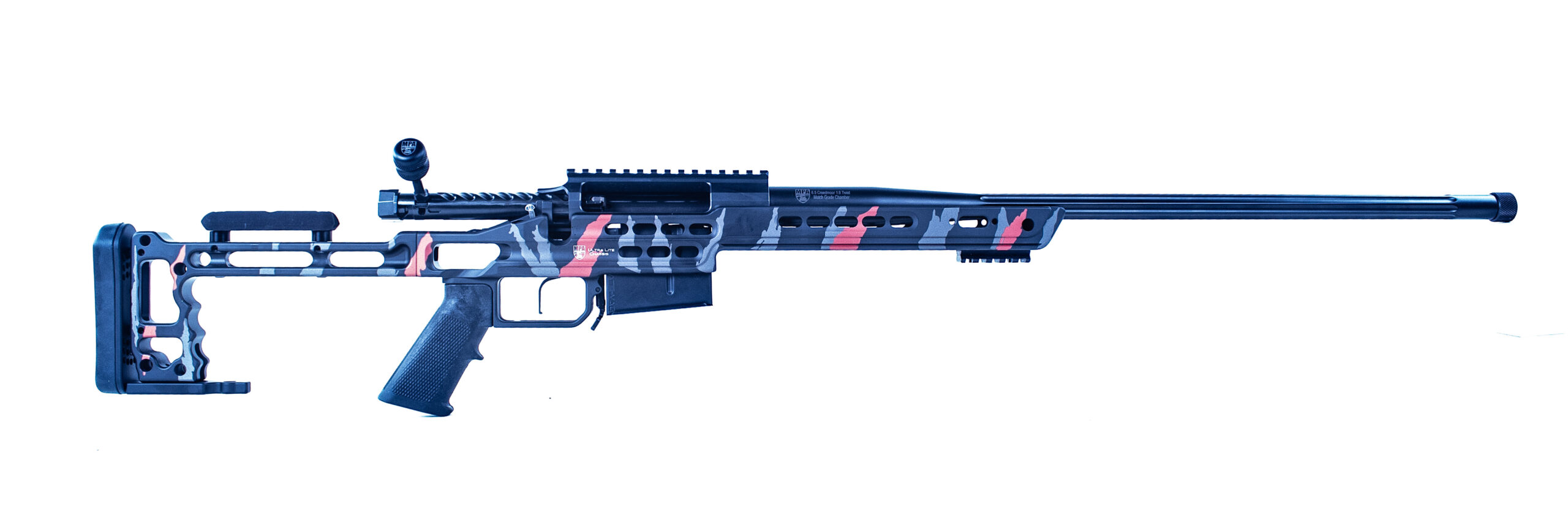

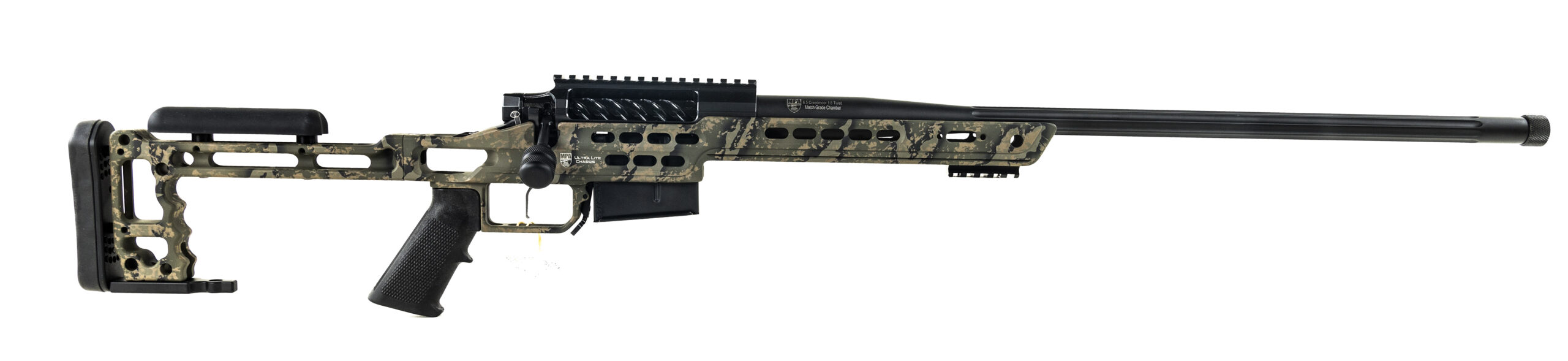

Custom Ultra Lite Hunter Rifle
Price range: $3,150.00 through $3,275.00
The PMR Series of Rifles from Masterpiece Arms utilizes the MPA Action, Specific Chassis Configuration and Color Options, plus premium 416R Stainless Hand Lapped Barrels to offer our customers a world class rifle at a price that is well below market expectations.
The PMR Ultra Lite Hunter is designed specifically for Hunting Applications, whether you are hiking 20 miles in the back country, tree stand, blind or from a tripod on stalking applications. Available in most popular hunting calibers, this rifle provides an outstanding value for this looking for a premium hunting rifle without breaking the bank.
The Custom Ultra Lite Hunter Rifle is purpose designed for light weight hunting applications. From the ultra light weight construction, the technically superior chassis design, and the accuracy capabilities, this rifle is providing long range precision hunters an unprecedented level of performance.
This rifle includes the following:
- Ultra Lite – Total Weight is 6.8 lbs
- MPA Elite Action
- MPA Ultra Lite Chassis – Available in 4 Different Custom Cerakote Options
- MPA Custom Straight Fluted Barrel
- 416R Stainless Steel, Hand Lapped, Zero Runout Chamber, Cerakoted Black Barrel
- Trigger Tech Special Trigger (1-3 lbs pull weight)
- AICS 5 Round magazine (Short Action Calibers) or 3 Round AICS (Long Action Calibers)
- Available in 6mm Creedmoor, 6.5 Creedmoor, 6.5 PRC, 308 Win, 7 PRC, 300PRC
Basics
- Caliber – 6mm Creedmoor, 6.5 Creedmoor, 6.5 PRC, 300 PRC, 7PRC
- Action – MPA 3 Lug Action
- Barrel – 416R Stainless Hand Lapped
- Action/Bolt Design – Remington 700 Type
- Chassis – MPA Ultra Lite Chassis
- Trigger – Trigger Tech Special (1-3 lbs Set to your Preference)
- Magazine – AICS Type
- Rifle Weight 6.8 lbs (Based on configuration with an Ultra Lite Chassis, 24″ Fluted Barrel, and MPA Elite Short Action)
Action
- MPA
- All Critical Features are machined after heat treat (Hard Machining)
- Integral Recoil Lug
- Integral 20 MOA Scope Rail
- Three Piece Bolt with Spiral Fluting
- All Bolts are Hand Lapped and Fitted to each individual action
- Nitride Action and Bolt
Barrel
- 416R Stainless Hand Lapped, Zero Runout Chamber, Cerakoted Black
- Heavy Palma, or Lite Palma (Fluted) Contours Available
- Threaded 5/8×24
- Precision Gun Drilled, Reamed and Honed
- Pull Button Rifled
- Stress Relieved
- Hand Lapped
- Chamber is indicated within .0001″ or less – to the bore of the rifle
Chassis
- Masterpiece Arms BA Ultra Lite Chassis (2.5 lbs)
- Produced from 6061 Aluminum
- V-Bedding System with Additional clearance for Glass Bedding Action and Straight Section of Barrel
- MPA Buttstock with Adjustable Cheek Riser, Length of Pull and Bag Rider
- Lower mounted Picatinny Rail
- RAT (Rapid Adjustment Technology) 1.5 ” Dovetail Rail (Tripod Direct Attachment)
- Custom Cerakote Finish
- Adjustable Mag Catch
- Leveling System – Inclinometer
- Thumb Notch
- A2 Grip
Trigger
- Trigger Tech Special (Set between 1-3 lbs – customer preference)
Rifle Case
- Plano Basic Rifle Case
Magazine
- Short Action Calibers will use the Accurate Mag AICS 5 Round Short Action magazines
- Short Action Magnum Calibers will use the Accurate Mag AICS 3 Round
- Long Action Calibers will use the Accurate Mag AICS Style 3 Round Long Action magazines
Specs
- Chassis Weight – 2.5 lbs
- Rifle Weight – 6.8 lbs (no optic, 24″ MPA Fluted Barrel, MPA Elite Action)
- Barrel Twist – Varies Depending on Caliber
- Barrel Length – Varies – Customer Determined
- Barrel Muzzle- Threaded 5/8-24 TPI
- Barrel Profile – Custom MPA Fluted Contour
- Coating – Cerakote (Chassis and Barreled Action)
- Length of Pull – 13-14.25″
- Trigger Pull – 1-3 lbs
