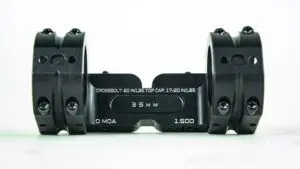

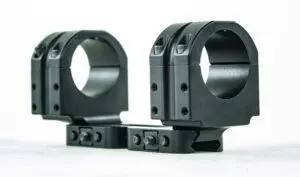

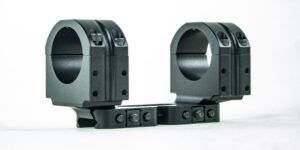

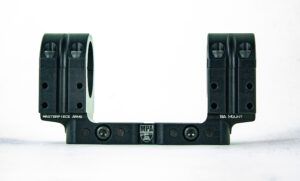

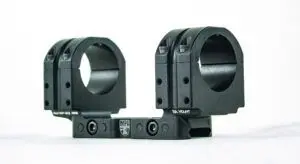

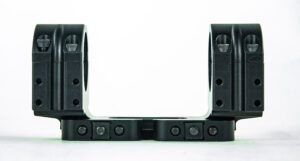

MPA BA Bolt Action Mount
MPA BA Bolt Action Mount – 1″, 30mm, 34mm, 35mm & 36mm
The BA Series Mounts are made for mounting high performance optics onto bolt action rifles with Picatinny rail scope bases. Pic rail to scope center line height varies. 1″ & 30mm versions are 1.060″. 34mm are 1.060″, 1.125, 1.250 & 1.500. The 35mm & 36mm mount measurement is 1.250″
The mount is precision machined from 6061 T6 aluminum and finished in hard coat T3 Mil-Spec anodize. Horizontal split rings. The interface ensures positive engagement for both in spec and out of spec rail systems. Absolute Return to Zero via multiple locking lugs located on the bottom of the rail interface.
FEATURES and BENEFITS
The MPA mounting system features the following advantages:
- 4 Mounting Locations on the left and right side of the mount body, in the front and back. The holes are on 20mm hole spacing, which works with other Unimount accessories.
- Extreme bore size consistency within +/- .0002″
- Roundness and cylindricity of bore within .0002″
- Provides the ability to confidently move the optic/mount to multiple rifles with simple windage and elevation adjustments.
- Superior clamping surface to ensure maximum rail engagement.
- Lifetime warranty
- Length 4.760″
- Weight 6.8 oz
- Rail to optic center is the size specified on the drop down menu.
- This mounting system is designed to handle large objectives up to 56mm (34mm Mount) and 50mm (30mm Mount).
This system provides over 3.5″ of rail interface providing extreme lockup on the host rifles scope base. Our NATO spec rail interface system pulls the mount onto the top of the pic rail, providing over 200% more rail contact than other competitive mounting systems that pinch the rail.
For proper selection of the correct mount, see the data below to match the proper MPA BA Mount to your optic:
MPA BA 1.060″ Height – Erector Housing to main tube measurement of 0.145″ or shorter.
MPA BA 1.125″ Height – Erector Housing to main tube measurement of 0.210″ or shorter
MPA BA 1.250 Height – Erector Housing to main tube measurement of 0.330″ or shorter
Please note, if you have a chassis that has a full length handguard from the action through the end of the fore-end, you will need to go with a taller mount to clear the rail. Otherwise, your objective will most likely contact the rail. If you have any questions about fitment to a specific chassis and your optic, please email email@example.com
Note: For US Optic Model ER-25, please select the 1.250″ height for your optic. This is due to the erector housing width and configuration and necessary clearances required for proper fit. Also, please notify MPA if this is the optic you plan on using. A special top cap is required to clear the elevation turret cap.
- Burris XTR-II – 1.060″ Height
- Bushnell Elite Tactical 34mm (all) – 1.060 Height
- Bushnell Elite Tactical 30mm (all) – 1.060 Height
- Khales 34mm – 1.125 Height
- US Optic ER-25 – 1.250 Height
- Vortex PST Gen II 5-25×50 30mm 1.060 Height
- Vortex Strike Eagle 5-25×56 34mm 1.125 Height
- Vortex Razor HD 5-20 35mm x 1.250
- Vortex Razor Gen II HD 4.5-27 – 34mm x 1.125 Height
- Schmidt/Bender 34mm – 1.250 Height
- Leupold Mark 8 – 35mm 1.250 Height
- Leupold Mark 5HD – 35mm 1.125 Height
- NightForce ATACR 5-25 – 34mm 1.125 Height
- Zero Compromise ZC527 & ZC420 – 36mm 1.125 or 1.250
- This list is not comprehensive – it’s a guide for some of the more popular scopes. If yours is not listed, please use the guide to measure it to determine the mount size:
If you have measured your optic and still have questions about the proper height selection, please contact MPA.
