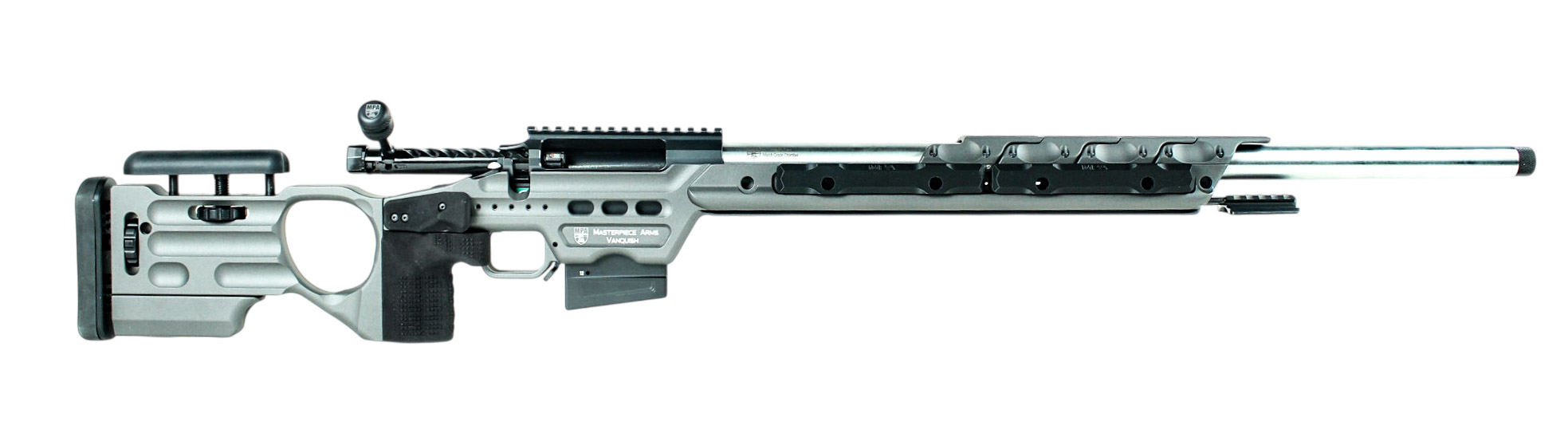

Vanquish PMR IPRF Rifle
$3,600.00
Masterpiece Arms builds World Class Rifles. We start with our industry leading Chassis System, utilize the Best Actions and Triggers produced, and our MPA/Spencer 416R Handlapped Barrels provide some the best shooting, most accurate rifles in existence. Designed, Built and Enhanced by Long Range Shooters and Hunters, our Rifles fulfill the needs of the most discerning shooters.
This rifle meets the Factory Division requirements for the International Precision Rifle Federation.
The Vanquish PMR IPRF Rifle is a combination of our newest Competition Chassis, the Vanquish II, along with the barreled action configuration from our PMR Series Rifles.
The options for this rifle in color and barrel profile are very specific. This gives us the ability to offer this world class rifle at an attractive pricing structure.
Available in a multitude of calibers, the Chassis’ for this rifle are available in Multiple Color Options with the barrel being a Polished 26″ MPA Match Contour. These economies of scale on the chassis cerakoting process and barrel manufacturing process provides cost reduction to the over rifle package price.
Calibers available are 223, 6BR, 6BRA, 6 Dasher, 6GT, 6mm Creedmoor, 25 Creedmoor, 6.5 Creedmoor, 6.5×47 Lapua, 6.5 PRC, and 308.
This rifle also includes our full internal and external weight systems.
Action:
- MPA Short Action (ARC MPA Elite)
- Wire EDM Bolt Lug Raceways
- Integral Lug and Scope Base
- Adjustable Trigger Hanger
- 3 Lug Head
- Integral 20 MOA Scope Rail
- Quick Release Firing Pin Assembly Removal System (Tool Less)
- Bolt: Three Piece Design of the Bolt, Lugs and Handle
- Spiral Fluting
- Black Nitride Coating
- Mechanical Extractor
Barrel:
- 416RQ Stainless Steel
- Precision Gun Drilled, Reamed and Honed
- Pull Button Rifled
- Stress Relieved
- Polished
- Hand Lapped
- Bore and Land Inspected on Video Borescope
- Sheffield Air Gage Inspection to .0001″ on Bore and Rifle Land Variation
- Chamber is indicated within .0001″ or less – to the bore of the rifle
- Muzzle thread 5/8×24

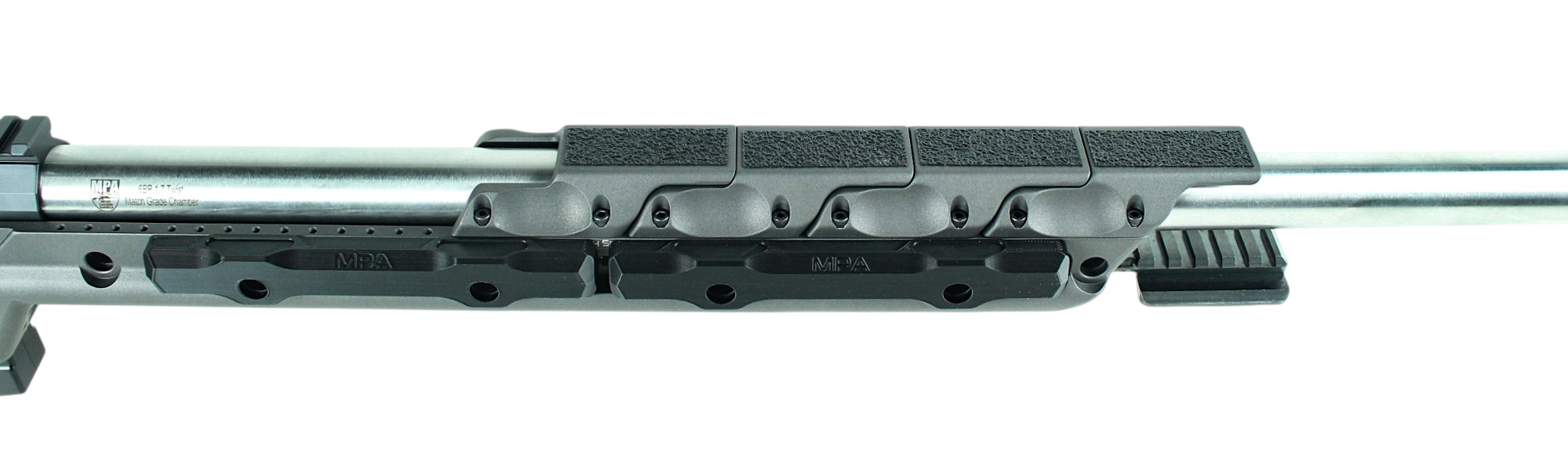

Chassis System:
- MPA Vanquish Chassis
- Masterpiece Arms Matrix Pro II Buttstock with Drop Down Bag Rider
- Magwell Plate System Ready
- Produced from 6061 Aluminum
- V-Bedding System with Additional clearance for Glass Bedding Action and Straight Section of Barrel
- MPA Matrix with Adjustable Cheek Riser, Length of Pull
- Built In Bag Rider with Butthook
- 2 Nesting Bridge section
- Steel Spigot Mount (Pic Rail and Arca Swiss Rail)
- Cerakote Finish – Multiple Colors Available
- Built In Inclinometer leveling system
- Matrix EVG Grip (Alternate grips are additional)
- Thumb Notch
- R.A.T. System Compatible
Thread Protector:
- MPA Muzzle Thread Protector
Trigger:
- Single Stage Trigger Tech Diamond
- Pull Weight: 4 oz-2 lbs
Accuracy:
- 1/2″ MOA or Better
Rifle Case:
- Plano Basic Rifle Case
Specs
- Total Rifle Weight (16.5 lbs with 26″ MPA Match Barrel – Does Not Include Ammo, Bipod, Magazine or Optic)
- Barrel: 416R Stainless Steel, Handlapped
- Action: MPA Elite (ARC)
- Chamber: Zero Runout Chambering Method
- Muzzle threads: 5/8×24
- Brake: No Included
- Chassis Type: Vanquish
- Chassis Colors: Black or Tungsten
- Chassis Material: 6061 Aluminum Billet
- Chassis Coating: H Series Cerakote
- Magazine: Accurate Mag 10 Round (308) Magazine
- Chassis Weight: 7.12 lbs (Standard Buttstock)
- Barrel Profile MPA Match Contour
- Barrel Length: 26″
- Trigger Type: Single Stage Trigger Tech Diamond (4 oz – 2 lbs)
- Adjustable Length of Pull: 12″ to 13.5″
- Cheek Riser: Adjustable
- Recoil Plate: Adjustable for Height and Cant
