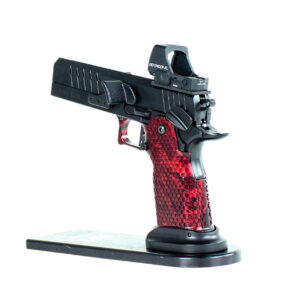

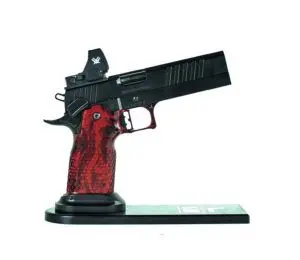

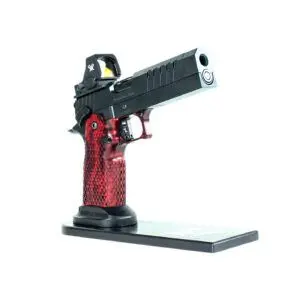

MPA DS9 Limited Optics Comp – V2 (LOC-V2) Lightweight Model
Price range: $3,999.00 through $4,324.00
The DS9 Limited Optics Competition Pistols were designed with heavy influence from our Team MPA members, which includes some of top Shooters in the USPSA. The DS9 LOC is a 9mm Minor Pistol intended for use in USPSA Limited Optics Division.
MPA DS9 Limited Optics Comp – V2 (LOC-V2) Lightweight Model
This pistol configuration is designed specifically for USPSA Limited Optics Division.
On May 1st 2023, the USPSA began the Limited Optic Provisional Division. At MPA, we have created the ideal pistol configuration for Top Level Performance for shooters who want to win. That was the “OG” (Original Gun) our LOC – Limited Optics Competition Pistol. Since then, we have done some extensive testing in making that model even faster, and flatter. With that we are proud to introduce the newest edition to the MPA lineup, the LOC-V2 Lightweight Model!
Our DS Series Pistols are hand built, hand lapped, tuned and ready to perform. Whether your application is shooting 3 Gun, USPSA Comps, Law Enforcement or simply a Shooting Enthusiast, the DS Series Pistols are an outstanding option for these and other applications.
After the pistols are hand built, they go through a rigorous testing and inspection system to ensure only the highest quality products are getting to our customers.
The DS Pistols are designed to shoot flat and fast, making successful target engagement easy for all levels of shooters.
The basis of this DS Pistol is our Hybrid, but with these specific enhancements:
- Stainless Steel Sight Block & Shortened Slide for less muzzle rise – incredibly flat shooting
- All LOC V2 Pistols will have a frame Machined with Thumb Rest Mounting holes. This gives the shooter multiple options for Thumb Support (Slide Stop, Slide Stop Thumb Rest, Frame Mounted Thumb Rest)
- Aluminum Aggressive MPA Grip – with Internal Mag Alignment Technology
- Optics Plate (your choice of a multitude of Optic Modules for most of the optics used by competitive shooters)
- Competition Magwell
- 2.0 lbs. Trigger Pull (Other pull weights available)
- Shielded Ambi Safety
- Machined Stainless Steel Trigger Bow
Specific Features for the DS9 Limited Optics Comp:
- Caliber: 9MM
- Barrel attached Sight Block, Machined from 416SS with a shortened slide provides an incredibly flat shooting design
- Custom Tuned Trigger 2.0 lbs (other pull weights available)
- Aluminum Aggressive MPA Grip
- Mag Alignment Technology in Grip Funnel
- Competition Magwell
- (2) MPA 141mm 9mm magazines
- Ideal for USPSA Limited Optics Division
Standard Features:
- Hand Lapped Frame to Slide Fit
- Hand Fitted Barrel with Barrel Block
- Hand Fitted Hammer/Sear
- Full Length Dust Cover Frame and Slide Machined from Billet – no Forgings (no light rail).
- Frame Drilled and Tapped (5X 5-40 bolts) for ease of adding a Frame Mounted Thumb Rest, and Adjustable to Each Shooter.
- All parts machined from Barstock and Billet. No MIM, Castings, or Forgings
- All Parts machined in USA. Here are the components machined by MPA: Frame, Slide, Barrel, BeaverTail, Ambi-Safety, Slide Stop, Firing Pin Stop, Ejector, Magwell, Stainless Grip, Sear, Hammer, Disconnector, Guide Rod, Reverse Plug
- Incredible Accuracy and Reliability
- Competition Ready
- Lifetime Warranty
For the Sig Romeo 3 “XL & Max” versions, this includes an additional $125 upcharge for special machining on the slide that is required for clearance for the tapered front surface on the optic housing from Sig.
Grip Texturing:
Click on this link for more information on our grip Texturing options:
Specifications:
- Design: 9mm Wide Body, Double Stack 1911
- Frame: Steel 5″ with Full Length Dust Cover (no light rail)
- Grip: MPA Machined Aluminum Grip with Aggressive Grip Texture
- Hammer: MPA Hammer, Sear, and Disconnector
- Trigger Shoe: MPA Machined (Short, Medium, Long Versions Available)
- Trigger Pull: 2.0 lbs
- Springs: ISMI 8lb recoil & 17lb mainspring, EGW sear spring
- Magwell: MPA Competition Magwell
- Slide: Steel 4.25″
- Barrel: Hand fitted 4.6″ Threaded MPA 416R Vacuum Heat Treated Stainless Bull Barrel.
- Barrel Block: Machined Stainless Steel
- Guide Rod: 1 Piece Stainless
- (2) MPA Magazines: 141mm
- Type of Pistol: Magazine Fed Semi-Auto
- Ammunition: 9mm Minor
- Safety: Shielded Ambi-Thumb Safety
- Finish: Black Nitride
- Overall Length: 8.9”
- Height of gun: 7.3”
- Weight: 2.68 lbs (43 OZ)
For the Sig Romeo 3 “XL & Max” versions, this includes an additional $125 upcharge for special machining on the slide that is required for clearance for the tapered front surface on the optic housing from Sig.
Ammunition/Recoil Spring Configuration For the DS9-LOC-V2:
The DS9-LOC-V2 ships with a standard ISMI 8LB Government length recoil spring. We recommend this spring weight to be used with factory loaded 115 grain, 124 grain, or 147 Grain ammunition.
If you are using 124 grain or 147 grain ammunition loaded between 130PF-135PF we recommend changing the recoil spring to a 7LB ISMI Government length with a shockbuff (EGW, or Wilson Combat).
