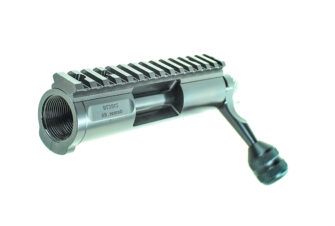

MPA Rimfire Elite Action – Right Handed
$1,399.00
Masterpiece Arms builds World Class Rifles, Chassis and Actions chosen by National and World Champions. Designed, Built and Enhanced by Long Range Shooters designed to fulfill the needs of the most discerning shooters.
The Masterpiece Arms Rimfire Elite Action stands as a pinnacle of reliability, performance, and accuracy, utilized by elite shooters globally. This refined action design has been perfected through extensive manufacturing expertise, coupled with insights from leading competitive shooters, resulting in the most dependable, high-performance action available.
Furthermore, this action is supported by unparalleled customer service and a dedicated support team, offering enhanced engineering and performance documentation to maximize shooters’ potential in all Rimfire Competitive Environments.
Receiver
- Remington 700 footprint
- Integral Recoil lug
- 30 MOA Picatinny rail
- 1 1/16-16 UN-2A Barrel Thread
- AICS Rimfire Mag compatible
- 60 Degree Bolt Throw
- Robust, 11 o’clock bolt release
- Black Nitride Finish
- Fixed Ejector
Bolt
- 2 lug Design
- Reliable and Proven Pad and Hook Extractor Design
- Controlled-round-feed extractor with ability to push/single feed
- Standard 5/16-24 UNF 2A bolt knob thread
- Black nitride finish
At MPA, we understand that many of today’s shooters want to select their own Rifle Builder to create the exact barrel configuration per their shooting application.
With this in mind, we have created a useful and intuitive Barrel Tenon Drawing to be used by your trusted Rifle Builder to match up perfectly with our MPA Rimfire Elite Action. This also provides the data need to fine tune the exact headspace dims to match specific rim thickness per your ammo of choice.
rimfire-elite-barrel-tenon-rev-a-1
Below are trusted companies that can chamber your rimfire barrel to match up with our MPA Rimfire Elite Action:
- Modacam Inc – Denver, North Carolina – 704-489-8500 – Jonathan Elrod
- Rachel Precision – Canton, Mississippi – 601-573-2753 – Randy Rachel
Click on the Image Below for our Inventory of Rimfire Technical Documents
